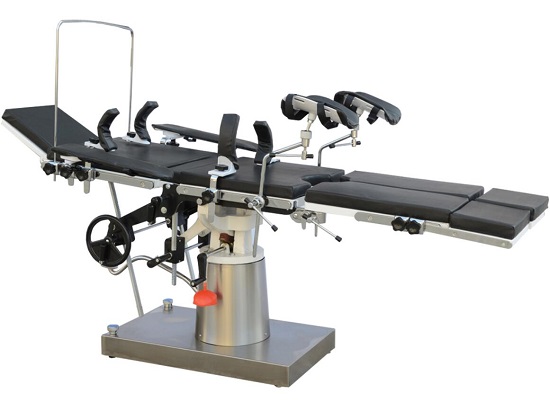

3001D Manual Hydraulic Operating Table

This table is suitable for surgical procedures of the head, neck, thorax, abdomen, abdomen, perineum and extremities as well as for gynaecological, oto-rhino-laryngological and orthopaedics operation. It can be raised or lowered hydraulically by means of an oil pump. Various positions can be controlled from both side. It has been awarded the first prize in China. It has won the "High Quality Product" certificate of the State Pharmacentical Administration Deparment.

Specifications
Overall Length: 2100mm
Width: 480mm
Head Section: 280×320mm
Back Section: 500×480mm
Seat section: 450×480mm
Leg Section:450×480mm
Foot Section: 200×533mm
Kidney Bridge: 85×415mm
Max Height: 920mm
Min Height: 720mm
Safe Working Load:150kg

Standard Accessories:
Anaesthetic Screen*1
Body support Large*1, small*1
Shoulder support*2
Arm rest*2
Knee crutch*2
Cushion *1
