Single Dome Ceiling LED Operating Lamp

Features:
1. Energy saving and environment-friendly.
2. Long service life: LED life is up to 50000 hours.
3. It offers illuminance memory funcition and wide voltage working speciality.
4. Excellent daylight quality and CRI meet the illumination needs of the doctors.
5. Excellent cold light: Adopting LED cold light as light source, without temperature rising.
6. Excellent lighting effect: Unique optical system, homogenous light spot, high-definition.
7. Brightness Adjustment: Micro computer digital control, with 8 shifts luminance for selection.
8. Flexible and stable balance arm suspension system contents various requirement on height and angle.

Specifications (for model 700)
Illuminance: 160,000Lux
Colour temperature: 3800±500K,4400±500K,5000±500K
Colour reduction index(Ra): 93
Illuminance depth: 1300mm
Total irradiance: 544W/m²
Size of light field:160~280mm
Service life of illuminant: 50,000h
Power supply voltage:AC110-240v,50/60Hz
Brightness adjustment: Automatic 8-stage continuous light adjustment
Lowest height of installation: 2900mm
Total power consumption: 80W
Total LED bulb quantity: 108 pcs (18*6)

Main Difference:
Model 700 Illuminance(Lux): 160000Lux, LED bulb: 108 pcs
Model 500 Illuminance(Lux): 140000Lux, LED bulb: 72 pcs

Download Literature:
700,500 Series LED Lamp

Send Quick Inquiry
Your Name: Required
Your E-mail: Required
Subject: Do Not Change It
Message:

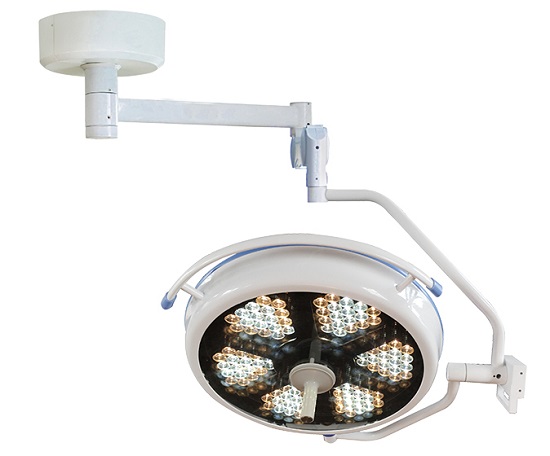

Model 700

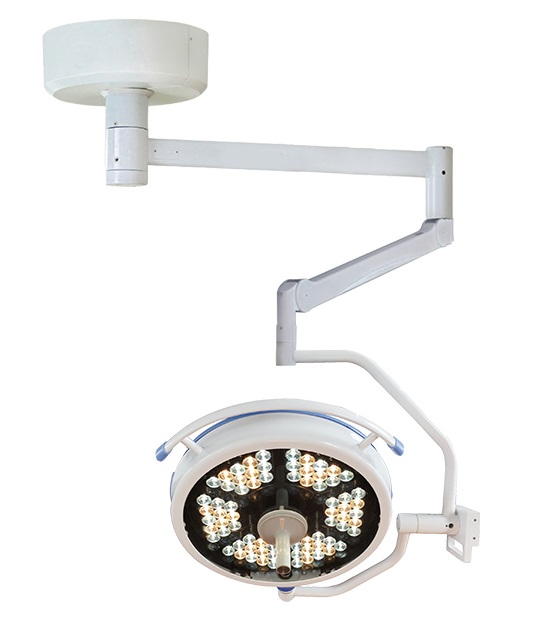

Model 500
