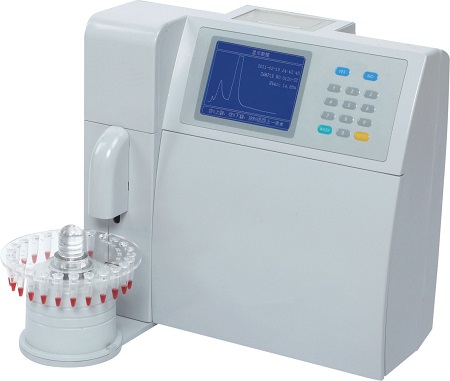

AC6601 HbA1c Analyzer

Basic Parameters:

Testing Method

Chromatography/ion-exchange liquid chromatography

Testing Item

Glycated hemoglobin HbA1c

Testing Scope

3%-18%

Testing Parameters

Precision (CV) <3% Accuracy (V) <1.5%

Testing Time

4 minutes (including reporting)

Sample Type

Venous blood (EDTA anticoagulation), Peripheral finger blood

Sample Volume

5 ul whole blood for each sample

Functional Parameters:

Photometer

415mn LED integral flow colorimeter

Sampling Mode

Full auto 25 position sample turntable (20 samples) position, 2 quality control position, 1 emergency position, 1 cleaning position, 1 zero position.

Testing Mode

Auto test for batch, single test for emergency

Calibration

Optional selection of 2 points or 4 points calibration, optional selection of manual or automation, equipped with 1 set of weight high and low level calibrators

Thermostatic control

Column and reagent thermostatic control 25 +- 0.5

Reagent matching

One piece of column and reagent consumable / 300 pieces of testing sample

Reagent allocation

Each standard package includes A, B, C, D eluent, calibrator, hemolytic agent, pump tubing

Output Parameters:

Display

320 x240 LCD Graphic display, displaying real-time testing curve

Printer

58mm Thermal printer, printing testing curve and report

Report output

IFCC concentration value, NGSP area percentage, ADAG average clucose

Data storage

1000 tests report (including testing curve)

Communication interface

RS232 communication interface, connecting to HIS/LIS system

Working Parameters:

Power supply

AC220V 50Hz

Size

408mm x 390mm x 230mm

Weight

9 Kg

Working environment

Temperature 12-30 , Relative humidity <85%
