Applicatioins
Wide Applications in Operating Roon, Energency Room, Orthopaedics and Surgery
Specifications
Generator Power/Frequency |
3.5KW/40KHz |
5KW/40KHz |
Radiography KV |
40-110KV |
40-120KV |
Radiogramphy Ma |
30-70mA |
24-70mA |
Fluoroscopy KV |
40-110KV |
40-120KV |
Fluoroscopy mA |
0.1-5mA |
0.1-5mA |
Pulse fluoroscopy |
0.1-8mA |
0.1-8mA |
Focus size |
0.6*1.5mm stationary anode |
0.3*0.6mm rotation anode |
Anode Heat capacity |
30KJ(40KHU) |
150KJ(200KHU) |
Heat capacity |
50KJ(667KHU) |
600KJ(800KHU) |
Collimator |
Iris, auto-tracking, variable visual field, double leaf |
Focus-to image intensifier distance(SID) |
1000mm |
1000mm |
C-arm depth |
730mm |
730mm |
C-arm open |
815mm |
815mm |
C-arm arc glide with full balance |
115 degree |
115 degree |
C-arm rotation (motored) |
180 degree |
180 degree |
Upward and downward movement(motored) |
400mm |
400mm |
Forward and backward movement(motored) |
200mm |
200mm |
Horizontal swing angle |
12.5 degree |
12.5 degree |
Image intensifier |
9" metall screen intensifier |
Camera |
High speed CCD camera |
Monitor |
14" high resolution monitor |
Panel |
Two operation panels, automatic displayerro codes |
Image Memory |
Store 8 images, freeze the last image, multilevel denoise, double displays in one screen |
Supply Power |
220V, 50Hz, 20A |
Power capacitor |
4KVA |
|

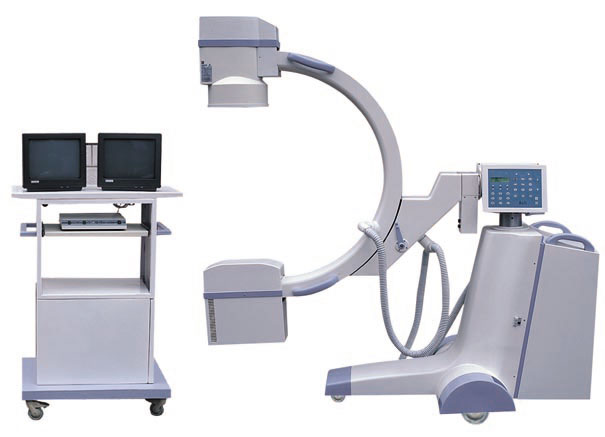

Click for larger size picture |
