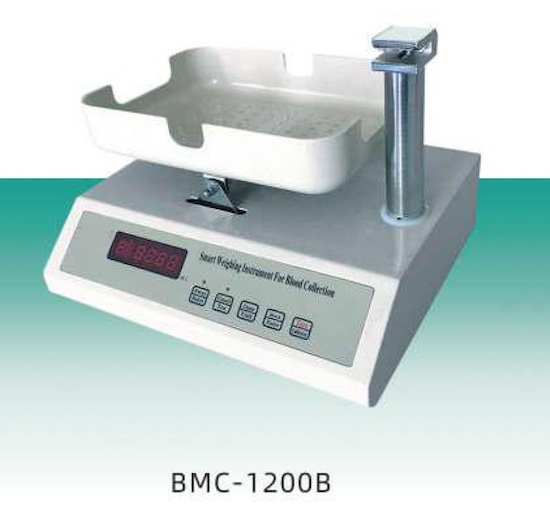

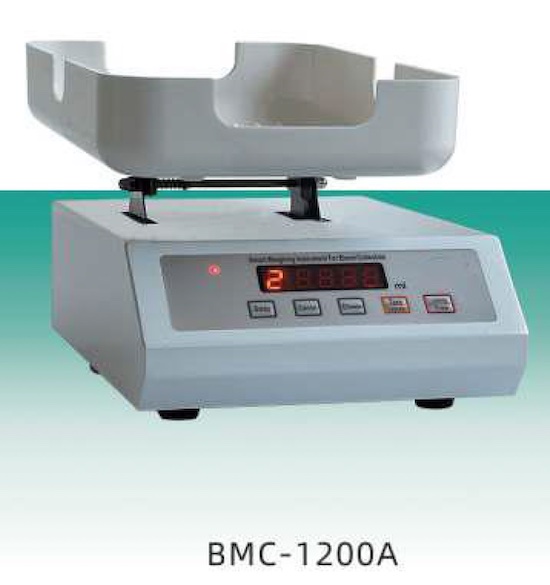

Blood Collection Monitor

The Blood Collection Monitor can avoid artificial error and physical damages effectively to the blood to ensure the livability of active ingredients in the blood during collection.
It is mainly used for blood collection organizations.

Features:
* Unique modern sensor and LED display.
* Preset volume of blood collection function.
* Taring and calibrating function, ensure measuring accuracy.
* Soft shaking mode, improving the survival of effective components in the blood.
* Shaking auto stops when bags are taken away during collection and restart working after bags are remounted.
* If collection volume is preset, the balance will stop shaking when there is 10ml gap and get into accurate measuring status.
* Automatic alarm when reaching the preset value.
* Humanization design and reasonable structure is convenient for operation.

Specifications:

Model

BCM-12A

BCM-12B

Measuring Range

0~1200ml

Measuring Accuracy

2%

Display Accuracy

1ml

Liquid Proportion

1.05g/ml

Collection Speed

0.5~3ml/s

Swing Frequency

30~32 r/min

Swing Angle

13±2°

Alarm

Audio and visual alarm

Audio and visual alarm with interrupter

Interrupter Thrust

——

≤14N

Power Consumption

12W

40W

Power Supply

AC110/220V±10%, 50/60Hz

External Size(W*D*H) mm

218*172*160

275*230*210

Packing Size(W*D*H) mm

310*260*210

350*270*260

Net Weight(kg)

2.8

3.3

Gross Weight(kg)

4.1

4.6
