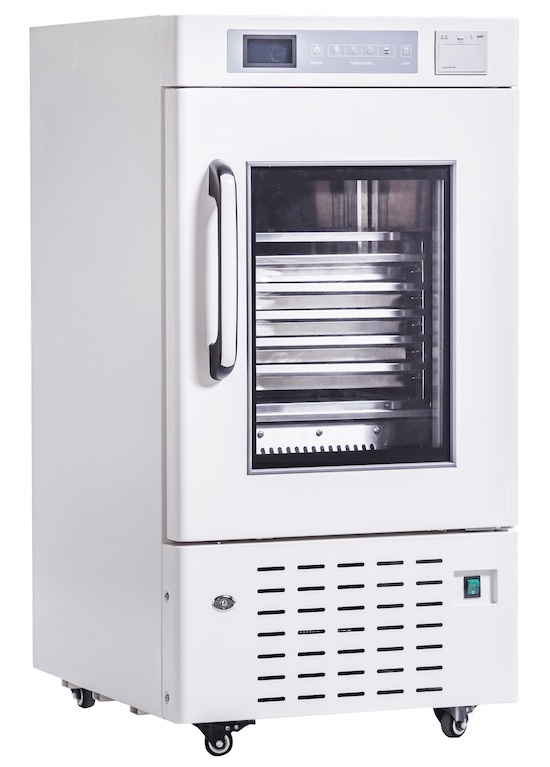

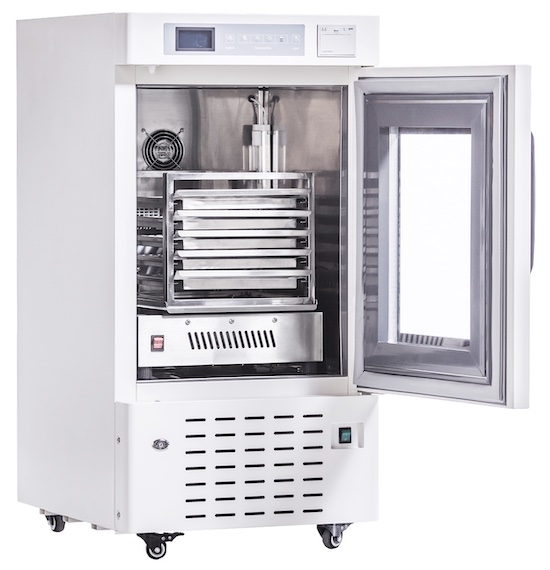

MDC-5, MDC-10 Blood Platelet Incubator

Applications
Malinmaus +22°C blood platelet incubators are specially designed to store blood platelet, biological reagent and chemical products for hospitals, blood stations, research institutes and university labs.

Features
- Accurate microprocessor controller makes the inside temperature within +22±2°C and resolution 0.1°C.
- Three-layer toughened glass door with self-close function.
- 304 stainless steel inner chamber and shelves for friendly using and easy cleaning.
- Brand oscillator made in Japan with low noise and long-time service.
- Wide available voltage range: 187V~242V.

Security
- Safety door lock and controller setting password to prevent unauthorized access.
- Build-in back-up battery to display temperature and to operate audible and visual alarm system for up to 72 hours without AC power.
- Visual and audible alarm system: High/low temperature, power failure, sensor error, door ajar, low battery.
- Power failure protection: turn on delay of the cooling system after power failure.
- Controller error protection: the cooling system will remember the normal working cycle and keep working depending on this memory when controller or sensor failed.
- Temperature printer: print current inside temperature automatically per 10 minutes.

Humanized design
- 4 casters with stopper for easy moving and fixation.
- Special designed service-free drainage system ensures no water in the cabinet.
- UV sterilization: adjustable sterilization time and will turn off automatically when the door is open.

Optional parts
- Test hole, 110V transformer.

Specifications:

Model No.

MDC-5

MDC-10

Performance

Temperature Range

+22±2 °C

Ambient Temperature

+10~32 °C

Controller

Microprocessor

Display

Digital Display

Noise

49 dB

50 dB

Electrical Data

Power Supply

220 V/50~60 Hz

Rated Power

197 W

208 W

Electrical Current

0.9 A

1.27 A

Power Consumption

2.69 kWh/24h

4.4 kWh/24h

Refrigeration System

Compressor

1

Refrigerant

R134a

Cooling Type

Forced air cooling

Defrost Type

Frost Free

Alarm

High/Low Temperature

Y

Sensor Error

Y

Power Failure

Y

Door Ajar

Y

Low Battery

Y

Dimensions

Capacity(450ml Blood Bag)

10

20

Interior Size(W*D*H)

427×360×467 mm

432×462×728 mm

Exterior Size(W*D*H)

522×600×1050 mm

522×600×1300 mm

Package Size(W*D*H)

640×740×1270 mm

650×700×1450 mm

N.t./G.t.(approx.)

74/95 kg

85/109 kg

Accessories

Shelf

5

10

Caster

1

Oscillator

1

Temperature Printer

1

Ultra-violet Lamp

1





Download Literature:
Blood Platelet Incubator
