Features:
Stainless steel electrothermal plate is widely used for curing and drying and temperature experiments, it is also one of the necessary tools for biology, interitance, medicine, environmental protection, science and research, etc.
Specifications:
Product name |

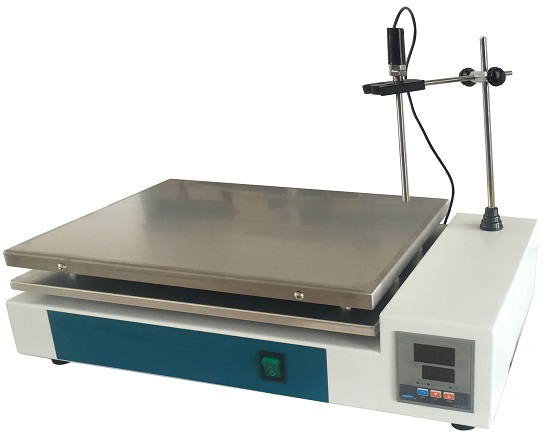

Intelligent temperature hot plate |
Model |
DB-1A |
DB-2A |
DB-3A |
DB-4A |
Temperature range |
RT~300 ℃ |
RT~300 ℃ |
RT~300 ℃ |
RT~300 ℃ |
Heating power |
500W |
1000W |
2000W |
2500W |
Platform Dimension(mm) |
200x150mm |
300x200mm |
380x200mm |
400x300mm |
Voltage |
220V 50Hz |
220V 50Hz |
220V 50Hz |
220V 50Hz |
Dimension(mm) |
300x150x140 |
400x200x140 |
480x200x140 |
500x300x140 |
Package(mm) |
380x240x195 |
480x290x195 |
560x290x195 |
580x390x195 |
G.W./N.W. |
6/5kg |
8/7kg |
11/9.5kg |
16/14kg |
|
|
