| Descriptions:

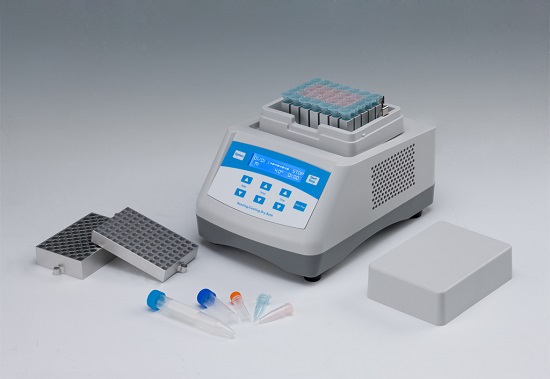

The DC10 Chilling/Heating Dry Bath is compact, versatile, reliable and easy to use. It is adopted high quality Peltier plate to ensure long-term stable operation and controlled. It can be widely used in preservation and reaction of samples, DNA amplification, electrophoresis denaturation and serum solidification , etc.
Applications:
Maintaining 14°C for ligation reactions
Maintaining 17°C for storing oocytes
Storing samples at ice bucket temperatures
Storing enzymes or DNA libraries at your work station
Transporting samples from the field at exactly the right temperature
Chilling or heating samples in the field
Enzyme reactions and deactivations
Freezing and storing most any small sample at your workstation
PCR sample preparation
Features:
- Energy-efficient Peltier design.
- Automatic fault detection and buzzer alarm function.
- Electronic calibration. User can reset to any local standard.
- Small, compact size uses very little bench space.
- Easy replacement,cleaning and disinfecting of metal blocks.
- Built-in over-temperature protection.
- Internal power supply provided is UL, CSA and CE approved.
- Customed modules are accepted.
- Buzzer alarm when temperature control ends.
- 12-month warranty.
Specifications:
Temp. setting range |
-10 ℃ ~100 ℃ |
Temp control range |
RT.-30 ℃ ~100 ℃ |
Time range |
1min ~ 99h59min |
Temp control accuracy |
≤±0.3 ℃ |
Display accuracy |
0.1 ℃ |
Temp uniformity |
≤±0.3 ℃ |
Heating time |
≤10min （ from 25 ℃ to 100 ℃ ） |
Cooling time |
≤10min （ from 100 ℃ to 25 ℃ ） |
Cooling time |
≤25min （ From room temp to under it 30 ℃ ） |
Storage at 4 ℃ |
Yes |
Multi point running |
Yes(Max. 5 points) |
Muiti cycle |
Yes(Max. 99times) |
Auto-warming |
Yes |
Auto-running |
Yes |
Automatic resume to run |
Yes |
Input power |
150W |
Voltage |
AC110~220V/50-60Hz |
Fuse |
250V 3A Ф5×20 |
Dimension(mm) |
260x195x150 |
Weight(kg) |
4.5 |
Opitional Blocks
Model |
Tube Diameter |
Number of Test Tube |
MD30 |
0.2ml |
96 |
MD31 |
0.5ml |
54 |
MD32 |
1.5ml |
35 |
MD33 |
2.0ml |
35 |
MD34 |
0.5ml+1.5ml |
15+20 |
MD35 |
0.2ml |
96 |
MD36 |
5ml |
24 |
MD37 |
10ml |
15 |
MD38 |
15ml |
12 |
MD39 |
50ml |
6 |
|
|
