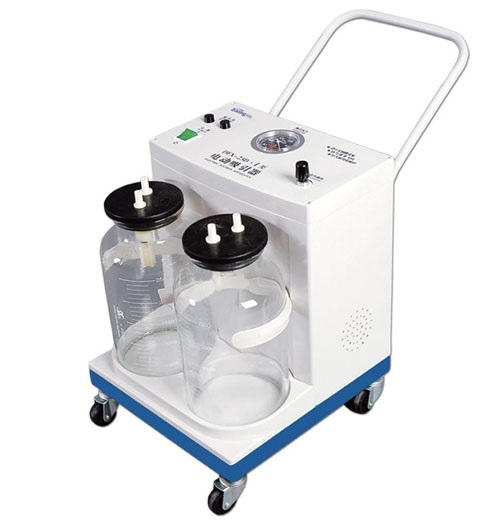

DFX-23D Suction Machine

DFX-23D Medical Plastic Mobile Vacuum Suction Machine is new style mobile suction devices , is for medical use designed for operations of gynecology in hospitals for taking out pus, blood, sputum and other thick liquid in human body. The pump requires no daily maintenance and servicing. The overflow protection device in the machine prevents liquid from flowing into the pump. Hand-operated switch and footstep-operated switch are connected in parallel for option. The complete machine works stably and produces low level of noise. It is long in service life and safe and reliable in use. All-plastic cases are adopted

Features:
Medical Plastic Mobile Vacuum Suction Machine All-plastic ABS enclosure that is formed in one piece is adopted.
The device is equipped with a imported membrane pump available with long service life.
This device has low noise and is maintenance-free.
This device is equipped with an overflow protection unit to prevent liquid from getting into pump body.


Specifications:

Power voltage: AC220V±10% 50Hz
Negative pressure: ≥0.09MPa (680mmHg)
Suction rate: ≥25L/min
Range of negative pressure: 0.013MPa~0.09Mpa (680mmHg)
Suction bottle: 2500ml x 2
Noise: ≤55dB
Input power: 400VA
Pump structure: Diaphragm type
Working type: intermittent loading,continuous operation
