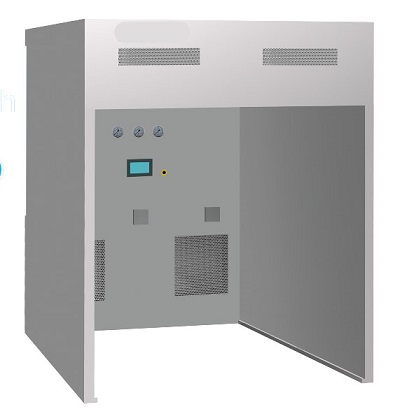

Dispensing Booth (Sampling or Weighing Booth)

Dispensing booth is a kind of partial purifying equipment for filling, refilling, weighing and sampling of raw material and compounds. It is provided with HEPA filter, which prevents the airborne dusts by down draught technique. The unit eliminates powder contamination to protect the operator and the surrounding environment.
Dispensing booth is also called sampling booth or weighing booth.

Features:
1.Automatic changeable frequency system monitors the air velocity to ensure its stability in the work area.
2.Differential pressure gauge is equipped to real-time monitor the filters.
3.Unique designed air duct effectively controls the noise.
4.Uniform flow design of main working area can protects the operators and prevent environmental pollution and cross contamination of products.
5.Intelligent control mode and alarm system ensure the reliability of running.
6.Smooth transitions of wall and ground can eliminate the blind angle.
7.Customized design is welcome.

Specifications:

Model

BKDB-1200

BKDB-1800

BKDB-2400

Clean Level

ISO 5 (Class 100), Class A

HEPA Filters

99.999% efficiency at 0.3 um

Air volume

Supply air volume: ≤7500m3/h,
Exhaust air volume: ≤2250m3/h; Adjustable

Material

Fully stainless steel

Air Velocity

0.35~0.65m/s, adjustable

Noise

<75db

Illumination

>800lux

UV Lamp

Emission of 253.7nm

Power Supply

110/220V±10%, 50/60Hz

Consumption

400W

800W

800W

Weight

150kg

200kg

250kg

Work Area Size (W*D*H)

1200*1200*200mm

1800*1800*2000mm

2400*1800*2000mm

Customized design for clean level, size or material is available



Send Quick Inquiry
Your Name: Required
Your E-mail: Required
Subject: Do Not Change It
Message:


Download Literature:
Dispensing Booth

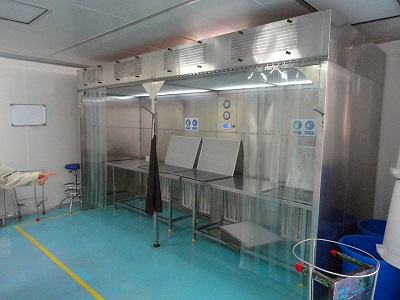

Reference Picture
