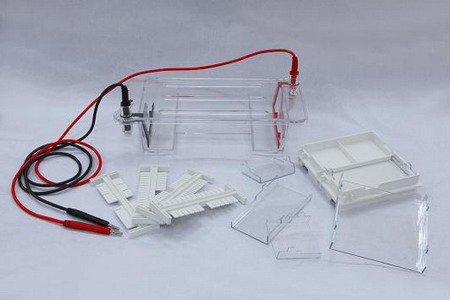

DYCP-31DN Electrophoresis Cell

Features:
Made from high quality Polycarbonate, exquisite and durable;
It is t ransparent, convenient for observation;
Withdrawable electrode, convenient for maintanence;
Easy and simple for the end user to use;
Special gel device for easy and fast gel casting operation;
Black band on the gel tray make it convenient to load the samples and observe the gel;
Save buffer solution;
Power fails when you open the lid for user's safe;
Power fails when you open the lid for users' safe;
High resolution separation with simple operation;
One gel casting device can cast different size of gel;
Special comb design, one comb has two different teeth.

Specifications:
Gel dimensions: 60 × 60(mm),120 × 60(mm), 60 × 120(mm),120 × 120(mm) ;
Runs up to 2+3 (2.0mm),6+13, 8+18 (1.5mm),11+25 (1.0mm) samples;
Comb: thickness: 1.0 mm , 1.5 mm and 2.0mm
Buffer volume: 650 ml ;
Weight: about 1.0 kg;
Size (L X W X H):310 × 150 × 90(mm) ;

Applications:
Submarine electrophoresis, for identifying, separating and preparing DNA and for measuring the molecualr weight of DNA.
