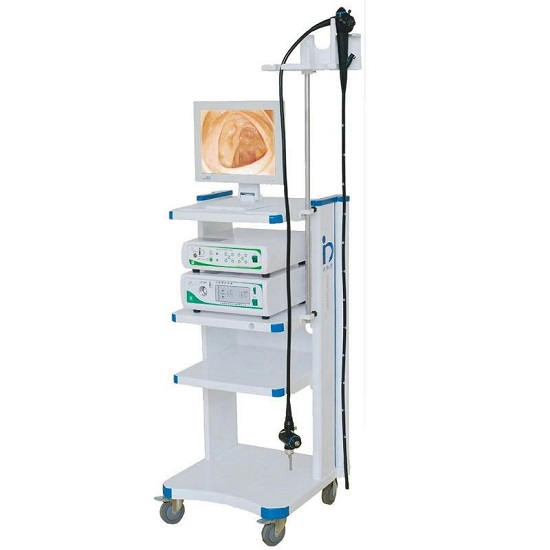

EMV-200 Video Gastroscope and EMV-400 Colonoscope

Standard option:

Item

video Gastroscope

video Colonoscope

Diameter of distal- end

Φ 9.4mm

Φ 13.0mm

Diameter of insert tube

Φ 9.3mm

Φ 12.8mm

Clamp aperture

Φ 2.8mm

Φ 3.8mm

Working length

1100 mm

1690mm

Total length

1400 mm

1990mm

View of field

140 º

140 º

Depth of view

3-100mm

3-100mm

Resolution

Sony 440,000 Pixels high resolution Photosensitive1/6 CCD

Tip deflection

up 210 ° down 90 ° L/R 100 °

up 180 ° down 180 ° L/R 160 °

We can provide OEM service, technical details can be customized.

HD option:

Item

video Gastroscope

video Colonoscope

Diameter of distal- end

Φ 9.4mm

Φ 13.0mm

Diameter of insert tube

Φ 9.3mm

Φ 12.8mm

Clamp aperture

Φ 2.8mm

Φ 3.8mm

Working length

1100 mm

1690mm

Total length

1400 mm

1990mm

View of field

140 º

140 º

Depth of view

3-100mm

3-100mm

Resolution

Sony 480,000 Pixels high resolution Photosensitive1/6 CCD

Tip deflection

up 210 ° down 90 ° L/R 100 °

up 180 ° down 180 ° L/R 160 °

We can provide OEM service, technical details can be customized.

Bending operation : Traction chain structure, whole sealed waterproof
Image display : Two image display optional
Split machine : Main part and light source are splited
Quality certification : ISO9001, 13485, CE
Warranty : One year(free), permanent repairs (not free)
Package size :64*18*48cm (G.W.:5.18kgs)

Download Literature:

Specifications

Brochure
