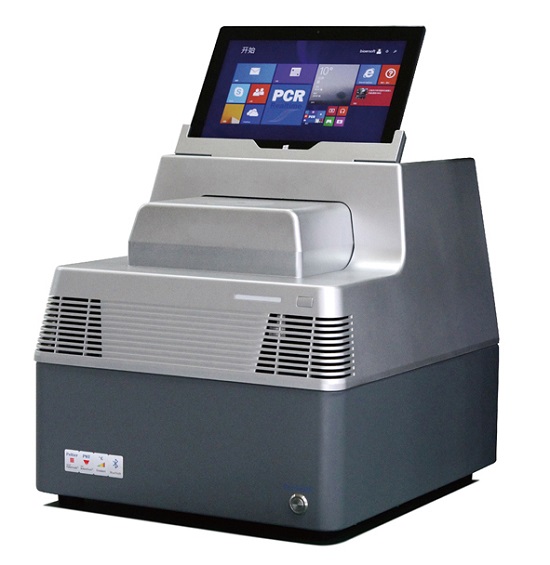

FQD-96A Real-time PCR

FQD-96A adopts Ferrotec specially-made Peltier, advanced fiber optic technology, new global wide-range power supply, the unique patented block dissipation technology and bottom detection mode, which provides better heating/cooling rate, temperature accuracy, uniformity and stability. Line-Gene 9600 Plus has up to 96 sample capacity and fast speed of dual-color scanning, and the design of 5 channel detection also covers the whole fluorescence detection wavelength.Newly-designed automatic hot-lid without manual operation ensures constant pressure for various tube heights. This auto hot-lid mode could be easily integrated into various automatic systems. Its Windows tablet computer and new touch screen brings excellent operating experience.Newly-improved FQD-96A Real-Time PCR detection system can satisfy various clients' requirement either for research or clinical use.

Specifications:

Product name

LineGene 9600 Plus Fluorescent Quantitative Detection System

Product model

FQD-96A

Sample Capacity

96x0.2ml PCR plate, 12x 8-strip tubes, 96 x0.2ml single tube (transparent bottom)

Reaction system

5~100ul

Dynamic range

1-10 10

Detection path

F1

F2

F3

F4

F5

F6

Suitable dye

FAM, SYBR Green I

HEX/VICTET/JOE/ CY3/NED/TAMRA

ROX,TEXAS-RED

Cy5

Cy5.5

reserved path

Excitation wavelength

300-800nm

Detection wavelength

500-800nm

Module working temperature range

4-105C (resolution: 0.14℃) with SOAK low temperature storage function

Temperature control precision

±0.1℃

Temperature uniformity

<±0.3℃

Hot lid temperature range

30-110℃ (adjustable, default by 105℃ and automatic hot lid)

Temperature control mode

Block Mode and Tube Mode (automatic control based on liquid level)

Operation mode

Continuous operation

Gradient temperature range

1~36℃

Fluorescence intense detection repetition

5%

Scanning mode

Full-plate scanning and designated line scanning

Scanning time

5.5s

Special function

Absolute quantitative automatic analysis, relative quantitative, 5NP analysis, melting Curve analysis, 6 independent temperature 7ones, HRM, Multi-channel| crosstalk calibration, background correction, auto gain, customizable parameters,.etc.

Programming

Max.20 segments for each program, max.99 cycles

Operating system

Microsoft: Windows 7/Windows 8.1/Windows 10

application software: Excel 200:2002/2003/2007/2012

Minimum computer configuration

RAM: 512M. hardware space: 10GB CPU: Pentium 4 virtual memory: ≥1000MB

Port method

Support USB and R5232 data port and Bluetooth port

Input power

100-240v, 50/60Hz. 600W

Outer dimension

410mmX386mmX352mm

Cerlification

Ferratec Peltier/CE/EMC/RoHS2.0/PICC Product Quality Liability Insurance/VD/MET
