| Introduction:
1. Usage
The intended uses of gel warmer GW-200 series are:
(1) increasing gel liquidity, easy to use;
(2) Adjusting gel temperature, let patient feel comfortable;
(3) improving gel usage effect.

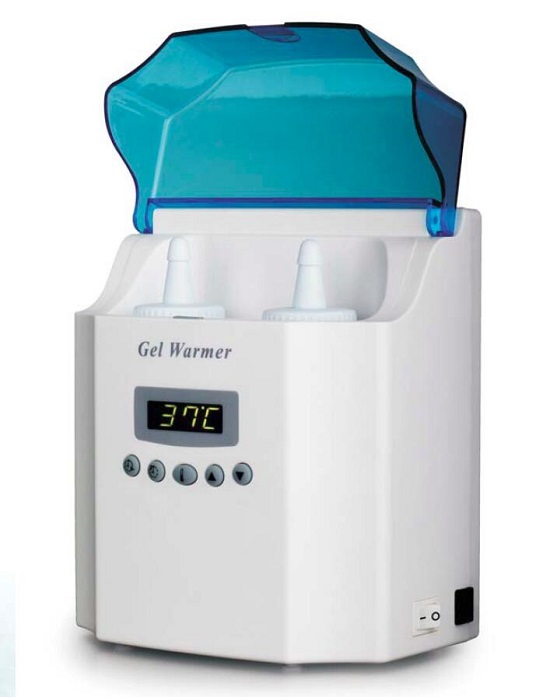

The GW-200 gel warmer can be used when using Ultrasound machine,
ECG, fetal doppler,vascular dippler, fetal monitor, physiatrics instrument and
lithotripter,feasible for human and animal.
2. Features
- Displaying parameters with LED
- Adjustable temperature control range 34~40°C
- Programmable timer to switch on and switch off
- 360 degree surround heater unit
- Digital temperature control technology
- High energy efficiency
- Ergonomic 2 bottles design
- Built-in durable wall mountable construction
3. Technical Specification
- Heating temperature range: 34~40°C
- Temperature control accuracy: ±1°C
- Size: 190mmx170mmx110mm
- Weight: 650g
4. Configuration
- Main body
- Adaptor
5. GW-200 Series Difference Table
Functions |
GW-210 |
GW-220 |
LED display |
Yes |
Yes |
Temperature adjustment |
No |
Yes |
ON/OFF Timer |
No |
Yes |
|
|
