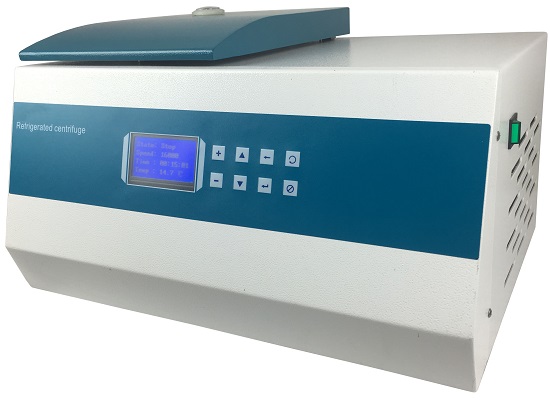

HC-16F Refrigerated Centrifuge

- Horizontal-type
- DC Brushless frequency motor,
- French TECUMSEH refrigeration compressor
- LED display speed, RCF and timer
- Enabling automatic malfunction alarm
- Touch panel control,
- With safety switch and electromagnetic door locks
- Error code display, speed up and down adjustment
- Suitable for researches on genes and proteinnucleic acid
- LCD display optional, Inverter Motor

Model HC-16F
MAX RPM 16000 RPM, stepless speed adjustment , LED display speed,RCF and timer
Max RCF 17800xg
Timer 0-99min
Rotor capacity Angle Rotor 1.5ml/2ml x12 (standard)
Temperature range -20℃~+40°C
Temperature accuracy ±2°C
Voltage 220V 50Hz
Dimension(mm) 560x460x370mm / 760x520x390mm
Weight 65kg / 100kg

Description Ordering number Max speed Rotor capacity Max RCF
Optional rotor 1 A160212 16000 1.5/2 ml× 12 17800×g
Optional rotor 2 A130224 13000 1.5/2 ml× 24 15800×g
Optional rotor 3 A121012 12000 10ml×12 14300×g
Optional rotor 4 A130510 13000 5ml×10 11400×g
Optional rotor 5 A115006 11000 50ml×6 11000×g
Optional rotor 6 A130548 13000 0.5ml×48 12800×g
Optional rotor 7 A1010004 10000 100ml×4 9680×g
Optional rotor 8 S044802 4000 48 holes microplate×2 1400×g
