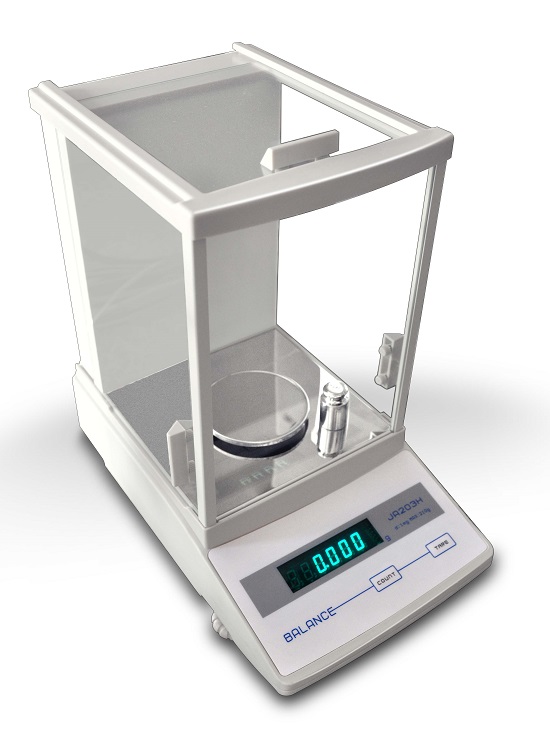

JA-H Series Analytical Balance (1mg)

The visual appearance of the product is blent into the simple concept, stylish and
generous. Specially makes the fine pouring cast- aluminum outer covering, so
as to enhance the balance of the anti-static anti-jamming capability. The panel with
five operational button, Sliding glass windscreen provide big space, insightful vision
and operate easily. We use high precision sensor to keep the weighing more
fast and stable.
-- Loadcell sensor keep weighing stable and fast
--Full range tare, Counting
--RS 232 Interface can connect the computer and printer.

Specifications

MO​DEL

JA103H

JA203H

JA303H

CA​PACITY

110g

210g

310g

C​LASS

II

RESO​LUTION

0.001g  (1mg)

REPEAT​ABILITY

±0.002g

LINE​R

±0.003g

STABLE ​TIME

≤3 s

OP​.TEMP

17.5 ~ 22.5 °C

PAN​ SIZE

Ф80 / Ф90mm

D​EMENSION

340*215*350 ( L×W×H ) mm

POW​ER

Power Line

CAL.MET​HOD

EXTERNAL

N.W​EIGHT

6.5kg/5.0kg

G.WEI​GHT

10.0kg/7.5kg

PACKING SIZE

         470X320X490 ( L×W×H ) mm

INTERFACE

RS232(Option)
