Maximum rating
--For fluoroscopy: 75kVp 3--5mA (uncontinuous use)
--For radiography: 75kVp 10mA 6sec, (interval time 3 minutes)
--Routine fluoroscopy condition: 65kVp 3mA
--Power supply: AC220V, 50Hz or 110V, 60Hz
--Current: For fluoroscopy 2A (uncontinuous);
--For radiography 6A (instantaneous)
--Total filtration: 2.5mmAL
--Range of movement: up-down: 220mm , left-right: 130mm
--Tube turning angle: vertical 360 degree, Horizontal: 320 degree
--Dimension: 50*31*17cm
--Weight: 25kg

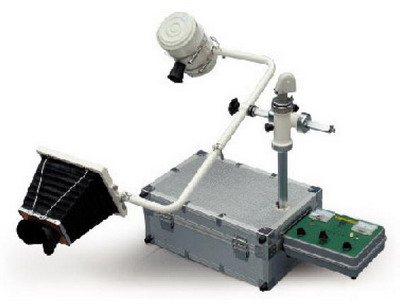

JF-10 Portable
|
Features:
--use the internation advanced technology, high-efficiency, clear imaging, low leak radial
--Light touched button, controlled with microcomputer, only press one button to select the exposue parameter, fast and accurately
--Developping in ligh room, image in one minute, the doctor can diagnose conveniently for maximum
--Pneumatic up-down seat, more convenient and more comfortable
--It is for the use of the digital imaging system of mouth
Specification:
--Power supply: AC 220V/110V, 50Hz/60Hz
--Tube voltage: 60KVP
--Tube current: 8mA
--Focus size: 1.5mm
--Total filtration: 2.5mmAL
--Exposure time: 0.2-4 sec
--Leak radiation:Outside one meter<0.002mGy/h
--Optional: Tube current: 0.5mA Fouse Size: 0.5mm

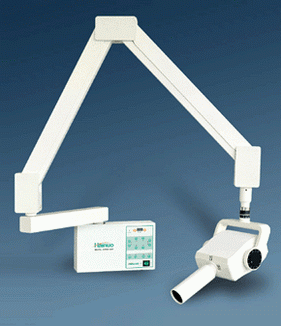

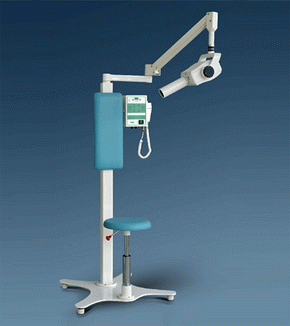

JYF-10B Dental JYF-10D |
