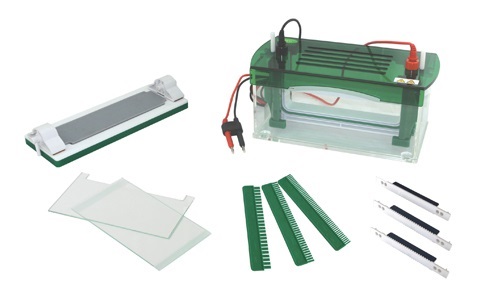

JY-CZ-B Rapid SSR Vertical Electrophoresis

Features:
- The installation of the glass plate in just 15 seconds, and does not need the knob, fast and convenient.
- With the gel making device of normal position,don’t should to moving the glass plate from the process of making gel to electrophoresis.
- With the Precast gel inner core, do not affecting the operation of gel making while the electrophoresis.
- Safety cover open button design, convenient opening the cover.
- Abundant buffer not only guarantees cooling effects, but also keeps the pH Value stable during the whole experiment process.
- Auto-switch-off when the lid is removed.

Specifications:
- Glass plate size (W×L):216×110 mm
- Gel Size (W×L):186×95 mm
- Gel thickness: 1.0 (mm)
- Gel amount:1~2 (pieces)
- Sample volume: (1.0mm)25, 40, 52wells
- Buffer Volume:~1800 (ml)
- Dimension (L×W×H):280×140×135 (mm)
- Net weight:3.2 (kg)
