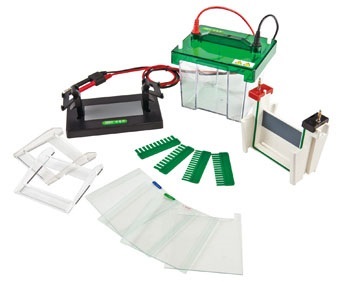

JY-SCZ2+ Mini-Protean Vertical Electrophoresis Cell

Features:
- The installation of the glass plate in just 15 seconds, and does not need the knob, fast and convenient.
- With a gel casting in original position, no need to move glasses from gel making to elctrophoresis running. It is more convenient to observe gel preparing through both sides of the glasses.
- High transparent polycarbonate material injection molding, impact resistance, high temperature resistance, corrosion resistance.
- Safety cover open button design, convenient opening the cover.
- With the background color, easy to be observed in the sample adding and electrophoresis process.
- Abundant buffer not only guarantees cooling effects, but also keeps the pH Value stable during the whole experiment process.
- Auto-switch-off when the lid is removed.

Specifications:
- Glass plate size (W×L):100×100 mm
- Gel Size (W×L):82×88 mm
- Gel thickness:0.75 , 1.0, 1.5 (mm)
- Gel amount:1~2 (pieces)
- Sample volume: (0.75mm)11, 15 wells; (1.0mm)11, 15wells; (1.5mm)11, 15wells
- Buffer Volume:~750 (ml)
- Dimension (L×W×H):150×120×115 (mm)
- Net weight:1.5 (kg)
