| Introduction

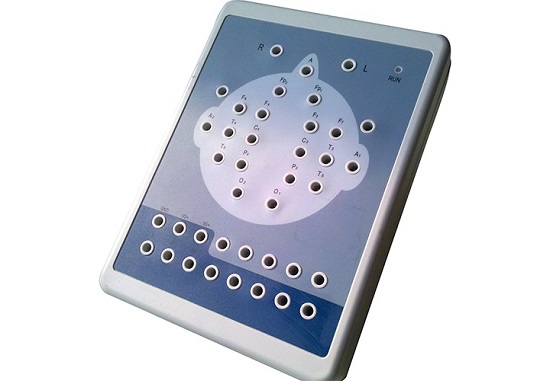

KT88 Digital Brain Electric Activity Mapping collects EEG signal with electrodes, via integrated amplification, A/D transformation, PC auto-analysis, FFT, to form electroencephalogram that displays with color depth. The product is applicable for checking such diseases as epilepsy, intracranial inflammation, cerebrovascular diseases and brain tumors.
Main Features
--16 channels of EEG+2 channels of ECG (ECG is optional)
--Sampling rate: 100 dots/s
--Accuracy: 12bit
--Input impedance: ≥10MΩ
--Patient leak current: < 10µA
--Noise level: ≤5µVp-p
--CMRR: ≥90dB
--Magnification multiple: 10000
--Filter constant: all digital and free enactment
--Display speed(paper speed): 5, 10, 15, 30, 60, 120 mm/s
--Amplitude: 1, 1.5, 2, 3, 5, 7.5, 10, 12, 15, 20, 30, 50 mm/50µV
--Playback speed:1 time, 2 times, 3 times, 10 times, 20 times, 40 times, 60 times
--50Hz interference suppression: ≥30dB
--Safety type:Class II, type BF applied part
|
|
