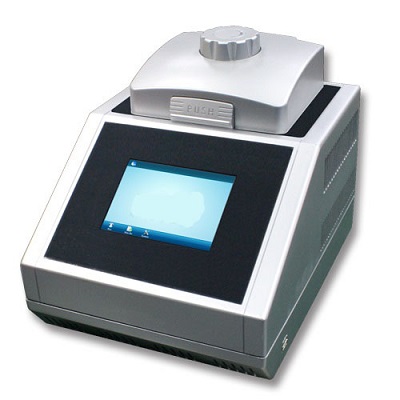

Life ECO Thermal Cycler
Features:
This new film adhering to the technical features of TC series consistent, using advanced thermoelectric refrigeration technology and new TAS technology, make the overall performance to a new height: more high temperature control precision, temperature rise faster, more uniform temperature profile module, smaller volume, operating environment is more static. The grace of functionally gradient not only has 30 DEG C, can be used to optimize the experimental conditions, meet the most demanding needs of, at the same time, the continuation of the Life Touch's "USB" function, leading the global PCR industry products fashion. On the basis of LifeTouch, LifeECO replacement for the higher price of 5.7 inches of LCD color touch screen, the display and convenient operation and direct.

Specifications:

Name

Life ECO

Product code

BYQ6078

Model

TC-96/G/H(b)C

Sample capacity

96-PCR plate(full-skirted)
96*0.2ml tubes
12*8-strip

Cooling technology

Peltier-based

Display

LCD display and touch screen(5.7 inch)

Temp.range

4 °C ~105 °C

Heating speed of ramping

Up to 4 °C /sec

Cooling speed of ramping

Up to 4 °C /sec

Temp.uniformity

±0.3 °C

Temp.accuracy

0.1 °C ( 55 °C )   <0.2 °C ( >90 °C  )

Temp.display resolution

0.1

Temp.control modes

BLOCK or TUBE

Ramping range adjustable

0.1 °C ~ 4 °C

Memory

≥250 typical programs onboard,unlimited with USB flash drive expansion

Max.No.of cycle

99 Suitable for Nested PCR

Time up/down

0 ~ 9min59s,Suitable for long PCR

Temperature up/down

0.1 ~ 9.9 °C ,suitable for Touchdown PCR

Auto pause/power protection

YES

Soak function

YES

Real-time running status display

Graph and text display

Gradient range

30 ~ 105 °C

Gradient temperature range

1~ 30 °C

Hot lid temperature range

30 ~ 110 °C

Height of hot lid

Adjusted

Auto shut-off function of hot lid

While block temperature is lower than set temperature or program ends, the hot-lid will be automatically closed

Communication interface

USB  B

Input power

100 ~ 240V,50 ~ 60Hz

Output power

600W

Dimensions(W*D*H)

335*260*270mm

Net weight

10kg

Certificates

Ferrotec Pelitier / MET / CE / ROHS
