| 1. Description:

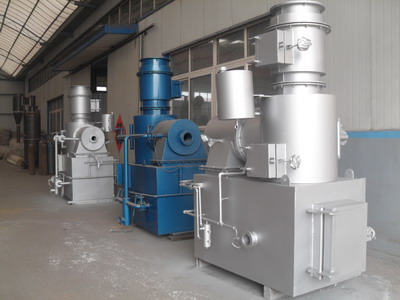

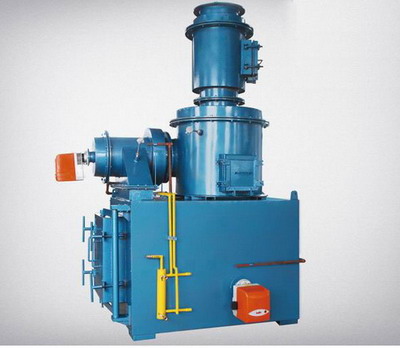

WFS Series Waste Incinerator is a kind of machine that was developed on the basis of Japanese technology, absorbs advantages of similar equipment both at home and abroad. It features unique and advanced merits with compact size, high burning effect, reasonable burning technology, high degree of non-harm etc. It is an ideal choice for waste treatment of hospitals, hotels and various areas.
2. Main Features:
(1) Gasified pyrolysis incineration is used for burning many kinds of waste.
(2) Waste can be burned once everyday by gasified incineration.
(3) Gasified incineration, mixed incineration and burnout treatment ensures low emission standard of dust, dioxin etc.
(4) Totally enclosed operation is suitable for treating infectious waste to avoid secondary pollution.
(5) Compact structure and small land occupation.
3. Models:
model |
WFS-30 |
WFS-50 |
WFS-150 |
WFS-300 |
WFS-500 |
Burning capacity |
20-30kg/time
(3-6 times/day) |
30-50kg/time
(3-6times/day) |
100-150kg/time
3-6times/day) |
200-300kg/time
(3-6times/day) |
300-400kg/time
(3-6times/day) |
incinerator Size(m): (L*H*B) |
1.45*0.9*1.75 |
1.8*1.15*3 |
2*1.4*3.5 |
2.2*1.4*3.8 |
3*2*4.8 |
imputing mouth width (mm) |
480*600 |
620*800 |
760*960 |
900*1100 |
1080*1280 |
Chimney external diameter (mm) |
280 |
280 |
300 |
400 |
460 |
draught fan |
0.37w |
0.37w |
0.5w |
1.1kw |
1.1kw/0.55kw |
Re-burning device |
Power: 0.11kw
Oil consumption 4-6 kg/h |
Power: 0.11kw
Oil onsumption: 4-8kg/h |
Power: 0.22kw
Oil consumption: 7-10kg/h |
Power: 0.37kw
Oil consumption: 8-14kg/h |
Power: 0.37kw
Oil consumption: 10-16kg/h |
voltage |
380v/220v |
380v/220v |
380v/220v |
380v/220v |
380v/220v |
Weight(kg) |
2300 |
4000 |
7000 |
8000 |
13000 |
|
|
