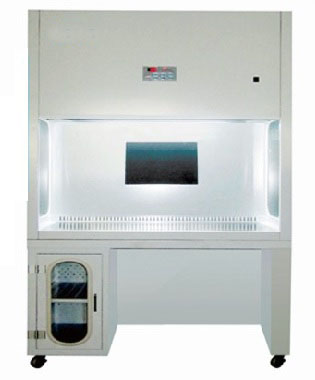

Medicine Compounding Cabinet is designed for dosage of drip medicine before treatment in hospital. It uses the technology of air purify, the test light of medicine, and heat the drip medicine automatically to make a clean environment for medicine dosage. And it can be used to heat the drip medicine and test the clean degree of drip medicine. It can be used in ICU, Preparation rooms, clinics, especially in winter.
Specifications:
Model |
PYG-1000-A |
PYG-1200-B |
PYG-1200-C |
External Size (W*D*H) |
1000* 680* 2200mm |
1200* 680* 2200mm |
1200* 695* 2200mm |
Internal Size (W*D*H) |
920* 565* 745 mm |
1120* 565* 740 mm |
1100* 540* 600mm |
Material |
Main Body: Cold-rolled steel with anti-bacteria powder coating |
Work Table: 304 stainless steel |
Front & Side Windows |
5mm toughened glass |
Pre-filter |
Washable, except model BYG-1200-C |
Filter |
1 |
1 |
2 |
HEPA filter with 99.999% efficiency at 0.3um. |
Airflow Velocity |
0.3m/s |
Work Area Pressure |
Positive |
Negative |
Protection |
Sample |
Three: operator, sample, environment |
Noise |
< 60dB |
Front Window |
No |
Motorized |
IV bar |
One IV bar with 10 pothooks for medicine bottles |
Fluorescent Lamp |
21 W * 1 |

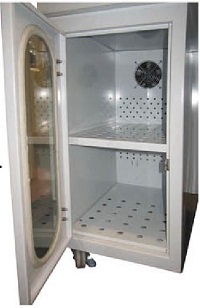

Heating Cabinet |
Size: 280*500*600mm (W*D*H) |
Temperature range: 27-35 ℃ |
Consumption: 300W |
Work Surface Height |
750 mm |
caster |
Universal caster |
Power supply |
110/220V ± 10%, 60/50Hz |
Consumption |
600 W |
600W |
1000 W |
Gross weight |
250kg |
270kg |
280kg |
Package Size (W*D*H) |
1190*870*1650mm |
1390*870*1650mm |
1390*870*1650mm |
1190*870*980mm |
1390*870*980mm |
1390*870*980mm |
|
|
