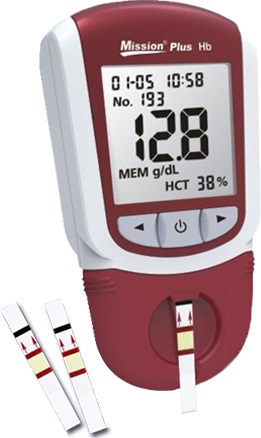

Mission Plus Hb Hemoglobin Meter

About Mission® Plus Hb
Fast, accurate hemoglobin results from a go-anywhere portable meter

Designed for POC Testing
- Portable handheld
- Large, easy-to-read LCD
- Optional test devices minimize contamination

Accurate
- Precise results equivalent to laboratory analyzers
- Wide Hb measurement range of 4.5 – 25.6 g/dL
- Calculated Hct range of 13 – 75%

Quick & Convenient
- Results in < 15 seconds
- Auto-calibration
- Stores up to 1,000 results
- Fast data transfer via Mini USB port

3 Easy Steps:
1) Insert Test Device or Strip
2) Apply 10 µL specimen with capillary tube
3) Read results

Features

Specifications

Methodology

Reflectance  Photometry

Detection Principle

Methemoglobin

Time to Results

< 15 seconds

Memory

1,000 tests with date/time and ID number

Specimen  Volume

10 µL

Specimen Type

Capillary and Venous whole blood

Hb Measurement Range

4.5-25.6 g/dL

Hct Range

13-75%

Wavelengths

525 nm

PC Interface

Mini USB Port

Calibration

Automatic

Hb Within Run Precision CV

≤ 3%

Hb Total Precision CV

≤ 3%

Accuracy

Venous Blood: Y=0.9582X+0.5673, R 2 =0.992;
Capillary Blood: Y=1.006X+0.026, R 2 =0.993

Operating  Conditions

10 – 40 ºC (50 -104 ºF); ≤90 % RH

Meter Storage Conditions

0-50 °C (32-122 °F); ≤90% RH

Strip/Device  Storage Conditions

2-30 °C (36-86 °F); ≤85% RH

Strip/Device  Shelf Life

2 years unopened  canister; 3 months opened canister

Power Source

4*AAA (1.5 V) or AC adapter (Mini USB, 5 V dc, 50 mA)

Battery Life

2,700 tests or 360 hours

Automatic  Shut Off

8 minutes

Meter Dimensions  (L X W X H)

137mm × 79 mm × 26 mm (5.4″x 3.11″x 1.02″)

LCD Dimensions  (L X W)

50 mm × 50 mm (1.97″x 1.97″)
