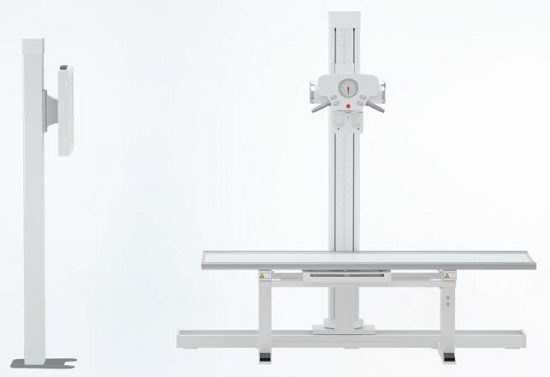

2. MTP50- A Spec |
Part |
Remark |
Flat Panel Detector |
Detector Technology |
a - Si Flat Panel Detector ( wireless ) |
Images Size |
17 × 17 inch (430 mm × 430 mm ) |
Static Pixel Matrix |
3072*3072 |
Output Grayscale |
16 bit |
Acquisition Time |
≤ 7 s ( wireless ) |
Preview Time |
≤ 5 s ( wireless ) |
Spatial Resolution |
Min. 3.5 line pair / mm |
DICOM 3.0 Compatible ( Dicom 3.0) |
X - ray Tube |
Tube Focus |
0.6 mm /1.2 mm |
Maximum Output Voltage |
150 kV |
Heat Capacity |
300 KHU |
Speed of Rotating Anode |
2800 r / min |
Output Power |
20 kW /50 kW |
Frequency Generator |
Inverting Frequency |
80 kHz ~300 kHz |
Standard Output Power |
50 kW |
Output Voltage |
40 kV -150 kV |
Output Current for Radiography |
10 mA -630 mA |
Range of mAs |
0.4 mAs -1000 mAs |
Floor Mounted |
Bed Size ( L X W X H ) |
2000 mmX 750 mmX 650 mm |
Bed Surface Longitudinal Movement Distance |
± 350 mm ( manual ) |
Bed Surface Lateral Movement Distance |
± 120 mm (manual) |
Column Rotation Range |
± 180 。 |
Vertical Movement Range of The Column Along The Bed |
± 900 mm |
X-ray Tube Up and Down Range Along The Column |
450- 1850mm |
Vertical Movement Range of Bucky Stand |
400- 1850 mm ( manual ) |
Collimator |
Max Work Dose |
150 kVp |
Power |
150 W (24 VAC ) |
Auto - close Time |
30 s |
Brightness |
≥ 160 lux (100 cm ) |
Radiation Field |
≥ 430*430 mm |
Control Mode |
Manua l |
Grid |
Grid Density |
40 lp / cm |
Grid Ratio |
10 :01 |
Focus |
100 cm |
Workstation |
CPU |
Dual - Core ≥3.0 2 G |
RAM |
≥ 4 GB |
Communication Network Card |
≥ 1000 M |
Hard Disk |
≥ 50 0 G |
D isplay |
24 inch |
CD / DVD recording / burning ( CD / DVD ) |
So ftware |
1 . Patient management : Manual registration , Automatic Query from Worklist |
2. Image acquisition : Automatic Window Adjustment , Automatic Image Segmentation , Automatic Sending |
3 . Image processing : Image Correction , Image Clipping |
4. Image viewer : Window / Level Adjustment , Image Flip , Image Rotation , Image Magnification , Restore |
5 . Medical report : Automatic Loading of Patient Information , Expert Template |
6 . Film printing : Supports Standard DICOM 3.0 Printer |
7 . DICOM transmission : Complies with the standard DICOM 3.0 PACS and Workstation |
8 . Automatic Numbering , Optimize the Workflow |
9. Supports Select All , Allowing Doctors to Operate All Images at the Same Time |
10. Support Expert Templates , Path Tree Form , Easy to Use , Add and Modify ; Support Multiple Automatic Operation Mode Conversion |
