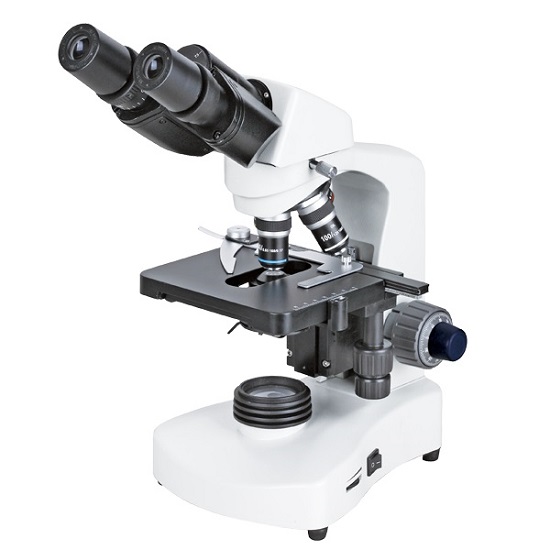

N-117M Binocular Microscope (LED)

Features:
- New machining facility and advanced alignment technology
- Complete functions and outfit of binocular microscope
- Comfortable operation with updated and ergonomic design

Technical Speicfications:

Viewing Head

Seidentopf Binocular Head, Inclined at 30 ° , Interpupilary Distance 48-75mm

Eyepiece

WF10X/18

Objective

Achromatic Objective 4X , 10X , 40X , 100X

Nosepiece

Backward Quadruple Nosepiece

Stage

Double Layer Mechanical Stage 132X142mm/ 75X40mm

Focusing

Coaxial Coarse and Fine Adjustment, Fine Division 0.004mm, Coarse Stroke 32.7mm per Rotation, Fine Stroke 0.4mm per Rotation, Moving Range 24mm

Condenser

Abbe NA 1.20 with Iris Diaphram and Filter

Illumination

S-LED Illumination, Brightness Adjustable
