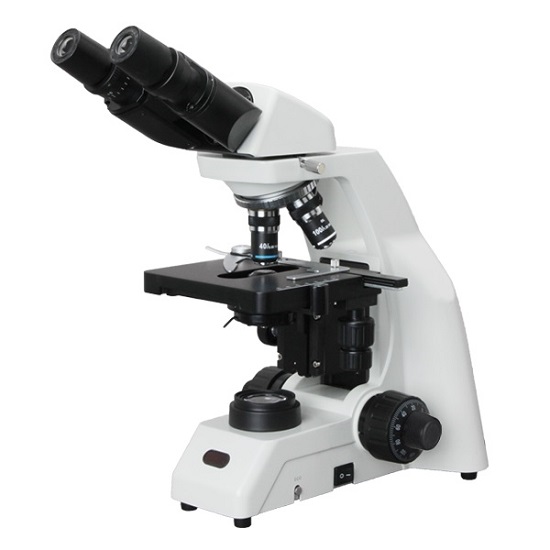

N-125 Binocular Microscope (LED)

Feature:
- Sharp Image Display with Excellent Optical Function.
- Small Space Occupancy with Integral Stand Design, Low Environment Requirement with Anti-mould Technology.
- Comfortable Operation with Ergonomic Design Principle.

Technical specifications

Optical System

Finite Optical System

Eyepiece

WF10 × /18

Viewing Head

  Seidentopf Binocular Viewing Head Inclined at 30 ° , Interpupillary 47-78mm

Achromatic Objective

  4 ×    NA=0.1  WD=18

 10 ×   NA=0.25  WD=7

 40 ×   NA=0.65  WD=0.53

  100 × NA=1.25 WD=0.13

Nosepiece

  Backward Quadruple Nosepiece

Stage

  Double Layers Mechanical Stage 140X140mm, Moving Range 75X50mm

Condenser

  NA1.25 Abbe Condenser

Focusing System

  Coaxial Coarse and Fine Adjustment, Fine Division 0.002mm, Moving Range 25mm

Illumination

  S-LED Illumination
