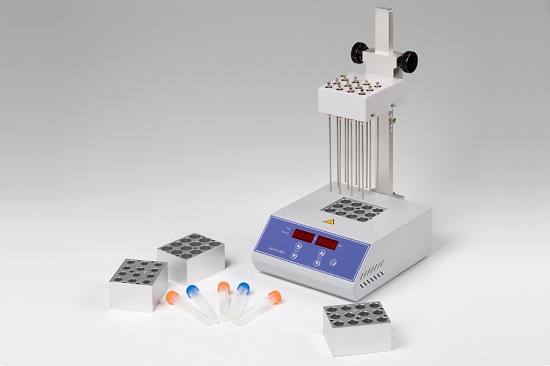

ND200-1 Sample Concentrator

Descriptions:
ND200-1 sample concentrator is with microprocessor controlled and PID fuzzy controlled technique. Instead of traditional water bath device, the heat-conducting medium is high purity aluminum. The test tubes are held in a block, blowing a large number of samples at one time. It can be used in residue analysis, commodity inspection, food, environment, pharmacy and biological product and other industries.

Features:
- High precision and wide range of temp. control.
- Blowing a large number of samples at one time.
- Blowing each sample independently.
- Amount of airflow can be adjusted.
- Easy operation; safe and reliable to use.
- 12-month warranty.

Specifications:

Temp. range

RT. +5 ℃ ~160 ℃

Time range

0min~ 99h59min

Max pressure

0.1Mpa

Nitrogen consumption

15L/min

Temp. accuracy

≤±0.5 ℃

Display accuracy

 0.1 ℃

Needle length

150mm

Standard blocks

1

Temp. uniformity

≤±0.5 ℃ (@100 ℃ )

Temp. Uniformity

≤±1 ℃ (@150 ℃ )

Heating time

 ≤30min(from 40 ℃ to 150 ℃ )

Max. orbit

200mm



Opitional Modules

Model

Tube Diameter

Number of Test Tube

MD50

10mm

12

MD51

12mm

12

MD52

13mm

12

MD53

15mm

12

MD54

16mm

12

MD55

19mm

12

MD56

20mm

12
