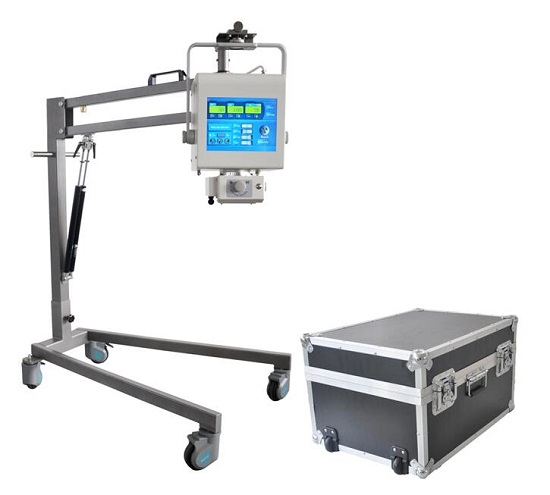

P500R Portable X-ray

Features:
1. Simple Stand design with wheels
2. The mobile stand is flexible and convenient to meet various position
3. It can be widely use for human limbs checking, diagnosing, especially used in hospital room, ambulance, disaster relief, emergency medical treatment, sports events, charity organizations, diagnosis etc.
4. The suitcase can be placed on the main X-ray machine, hand switch control, remote control, you can choose different exposure control.Also it's easy to transport and carry cos special compact structure.
5. Deft and concise
6. 6 periods of digital LED display
7. Failure self-protection, self-diagnosis
8. High precision control of tube voltage, tube current
9. 48 kinds of presupposed anatomy memory pattern choice
10. Accuracy control method of simulation and double digital loops
11. X-ray tube complete surrender by lead for protect X-ray leaking
Exposure by hand switch
Exposure by remote control
Exposure by touch screen

Specifications:

Power

Voltage

AC220V ± 22V



Generator

Power

5kW

kV Range

40 ~ 110kV

mA Range

20 ~ 100mA

mAs Range

0.2 - 20 0mAs

Working Frequency

40kHz

Exposure time

0.01S ~ 4 S



X-ray tube

Anode heat storage

56KHU

Focus

1.8mm

Inherent filtration

1mm Al/75Kv

Light source

LED

Touch Screen

Dimension

10.4inch
