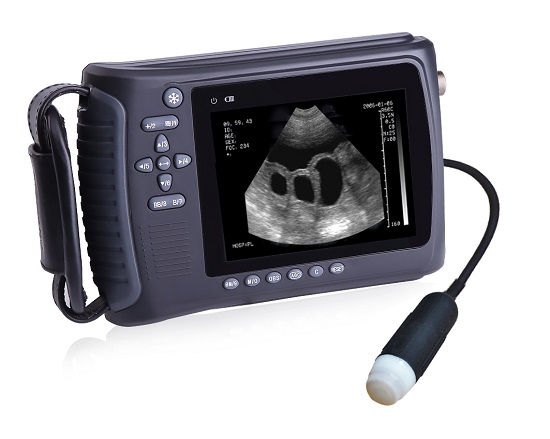

PL-2018V Veterinary Ultrasound Scanner

Range of application:
Swine, canine, bovine and etc.

Brief Introduction:
This equipment is high resolution linear/convex ultrasound scanning diagnostic equipment.
It adopts micro-computer control and digital scan converter (DSC), digital beam-forming (DBF),
real time dynamic aperture (RDA), real time dynamic receiving apodization, real time Dynamic receiving focusing (DRF), digital frequency scan (DFS), frame correlation technologies to endue its image with clarity, stability and high resolution.

Specifications:
Displayed Depth(mm): 192
Maximal detect depth(mm): ≥140
Resolution(mm): Lateral, ≤4 ( depth≤80 ) , ≤5 ( 80 < depth≤130 ) ; Axial, ≤2 ( depth≤80 )
Blind zone(mm): ≤8
Geometric position precision: Horizontal≤20; Vertical≤10
Monitor size: 5.0” TFT-LCD
Display mode: B, B+B, B+M, M, 4B
Image gray scale: 256
Scan depth: 120mm-190mm
Image process: histogram, color encode, gama, image smooth
Measurement: distance, circumference, area, volume, heart rate, gestation age
Notation: date, time, name, sex, age, full screen words edit and etc.
Output: USB 2.0, VIDEO ( PALD, NTSC)
Charging method: adapter, battery
Adapter rating: 100-24 0V ~ , 50-60Hz, 70VA
Battery: 2600mAh, continuous work: ≥3 hours
Machine size: 230mm(L) x 120mm(W) x 38mm(H)
N.W: 800G

Standard Configuration:
* Scanner Body: 1pc
* Li-ion Battery: 1pc
* 3.5MHz Sector Probe: 1pc
* Charger with a Set of Wires: 1set
* Wrap Bag: 1pc
* Bottle of USG gel: 1pc
* Transportation Case: 1pc
* User Manual: 1pc

Optional:
* 5.0Mhz Waterproof Sector Probe.
* Video Printer
* Li-ion Battery
* Car Charger
* Charging Adaptation Wire
