Features:

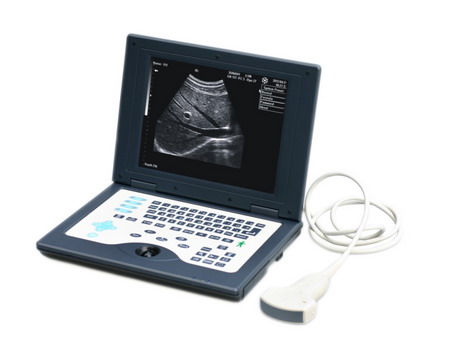

The PW-5800 is a high-end laptop-design B/W ultrasound imaging system,which integrates PIOWAY'S latest digital imaging technologies and four-frequency probe technology,Its size as small as a laptop and it weights 2.3kg only. Though compact in dimension,it is featured with clear images and powerful functions,which are usually found in bulky ultrasound system.Compelete software package.it is suitable for ultrasound exams such as hospital,beside checking in hospitals,outgoing consultation and fieldwork.
Specifications:
Display: B,B+B,4B,B+M,M
Monitor size: 10.4" color TFT LCD
Gray scale: 256 levels
Gain: 0-127
Extensive software:
Abdomen,Obstetric,Gynecology,Urology,Cardiology,small parts
Scanning convex: Convex,linear,multi-frequency with wide band
Probe frequency: 2.0-9.0MHz
Dynamic range: 27-90dB,visual adjustment
Scan angle: From 30-150 degree(depending on probes)
Scan depth: From 40-240 degree(depending on probes)
Cineloop: 256 frames
Permanent storage image: 100 frames
Internal pseudo: 8 kinds of internal pseudo color display
Body marks: 64 kind of body marks
Image processing:
Continuous dynamic focus,dynamic aperture,dynamic filter,gamma correction,black/white conversion,left/right conversion,up/down conversion,edge enhancement,etc.
OB measurement: BPD,CRL,GS,FL,HL,LV,TTD,APTD,HC,AC,FT,TAD,THD,TCD,OFD
General measurement: Distance, Circumference/Area, Heart Rate, EF rate for heart and Gestational Age, Fetal weight, EDD.Characteristics:showing in real-time clock, ID, Sex, Age, Focusing info and Hospital name.
Puncture guide: Puncture guide with two adjustable(angle&position)guide line
Power supply: AC110/230V,60Hz/50Hz
Peripheral ports: Video,S-Video,USB,DC12V
|
|
