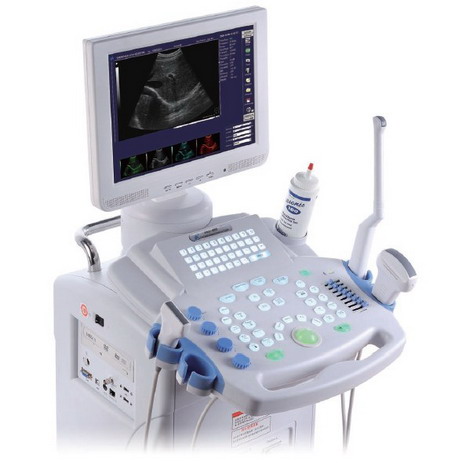

PW-660 Digital Trolley Ultrasound Scanner (Windows Based, 128 Element)

Main Features:
Windows XP operation system based
4 sets of scroll menus mouse control friendly
Ultrasound Work-Station managing system
Powerful measurement & calculation software packages
Patient data managing system
THI(tissue harmonic imaging)
4X images
pseudo color
Dicom 3.0

Technical Specification :
Scanning mode :Convex/Linear/Micro-convex
Display modes :B,B+B,B+M,M,4B
Scanning depth :40mm-240mm
Gray scales :256
Cine-loop >500 frames
Image permanent storage :>1000 frames
hard disk :>80G
Image conversion :up/down, left/right, black/white
Local zoom :6 times both in real-time and frozen
pseudo color :10
Measurement :General,Gynecolorgy,ObstetricGynecolorgy,Cardiac,Urology,
Miniorgan,Orthopedics
Probes selectable :convex, linear, micro-convex, transvaginal and dorectal
Port:PAL-D,XGA,PS/2,USB2.0,DICOM3.0
Monitor :15 inch LCD
Body marks :40
Comment :Pid,date&time, name, sex, age, doctor, hospital,annotation,......
Wide application :abdomen, OB/GYN, urology, cardiology,......
Power supply :AC 110V~240V, 50Hz/60Hz
Probe connector :2

Standard configuration:
60R/3.5MHz Convex ,7.5MHz Linear

Options:
5.0MHz Micro-Convex
6.5MHz Transvaginal
7.5MHz Endorectal Linear
3D Software
Video Printer
Biopsy bracket
