Description:

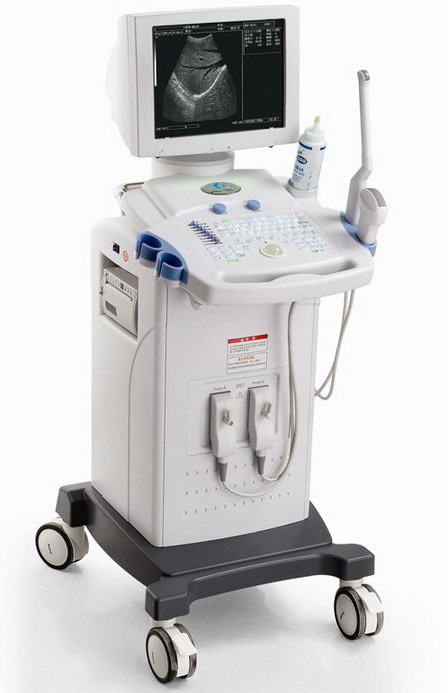

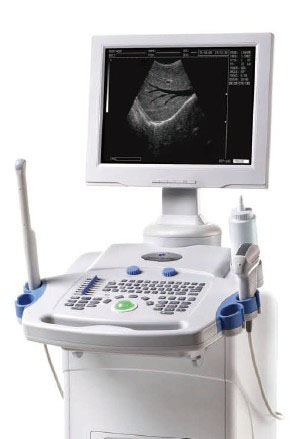

PW-9618C is a fully-featured ultrasound system, providing premium images that make a diagnostic difference. The revolutionary imaging technology, a complete range of transducers, powerful measuring and analyzing system bring the compact, mobile ultrasound right to the point of care.
Main Features:
Beamforming technology
Probe automatic identification
8-Segment TGC adjustment
Digital encoder knobs
Gama correction, histogram
Automatic report generation(Normal/OB)
Scanning angle adjustment
16 Level scanning depth adjustment
USB 2.0
Biopsy guide available
Back-lit keyboard
Technical Specification :
Scanning modes : Convex/Linear/Micro-convex
Modes : B,B+B,B+M,M,4B
Scanning depth :
240mm
Gray scales : 256
Cine-loop : 819 frames (Max)
Image permanent storage: 32 frames
Image conversion : up/down, left/right, black/white
Local zoom : 2 times both in real-time and frozen
Measurements :distance, circumference, area, volume, EF rate, heart rate,and etc.
OB measurements : BPD, GS, CRL, FL, HC, AC, EDD, GA, FW
Probe connectors : 2
Probes selectable:convex, linear, micro-convex, transvaginal and endorectal
Video output : PAL-D
Monitor : 12 inch SVGA
Body marks : 40
Comments : date&time, name, sex, age, doctor, hospital, a nnotation (whole screen comment input)
Wide applications : abdominal, OB/GYN, urology, cardiology, small parts examination, and etc.
Power supply : AC 110V~130V/220V~240V, 50/60Hz
Standard configuration :
3.5MHz Convex ,6.5MHz Transvaginal Convex or 7.5MHz Linear
Optional configuration :
7.5MHz Linear
5.0MHz Micro-Convex
6.5MHz Transvaginal Convex
7.5MHz Endorectal Linear
Video Printer
Biopsy Bracket
|
|
