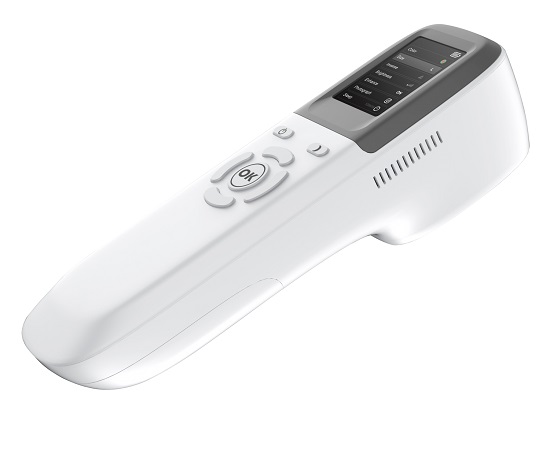

QV-600 is a portable vein finding device. It can project the blood vessels image on skin surface accurately and timely. The ergonomic design makes it very comfortable to hold. And the optional desktop stand and mobile trolley are available for multiple application situations.
Help doctors and nurses easily find veins of various patients, such as obesity, hairy or dark skin people, etc. It highly increases the success rate of puncture thus reduces the cost and pain.
This device also can be used to examine patients with varicose veins, and avoid closed or bifurcated veins.
Functions
This machine has various user-defined functions, which can adapt to different ages, body shapes, skin colors, weights and various operating environments. And it can be used for dialysis elbow puncture, plastic surgery and infant puncture.
- Twelve Colors: Suitable for different skin colors or environments.
- Three Sizes: Suitable for adults, children and newborns.
- Six Levels of Brightness: Adjust the projection image to the most comfortable brightness.
- Inversion Mode: Reduce arm hair interference and make blood vessels clearer.
- Enhancement Mode: Enhance the clarity of blood vessel detection.
- Sleep Mode: Enter into low power consumption mode when the user needs short intervals and can be waked up quickly. Automatical sleep time can be set.
- Photograph: Store venous images for medical staff to track and analyze pathology.
- Image storage capacity：6000 sets, accessed by computer.
- Electric Quantity Monitoring: Display on the LCD and alert when battery is low. Automatical shutdown without operation for 35 minutes.
- Ten Languages
Parameters
Infrared light detection without harm to human body.
Infrared Wave: 760-940nm
Infrared detection depth: 0-10mm
Best detection distance: 18-30cm
Accuracy of blood vessel position: ±0.3mm
Accuracy of blood vessel resolution: ±0.3mm
Low working noise: ≤20dB
The battery capacity can be displayed.
Low Battery capacity prompt.
Samsung 4800mA rechargeable lithium battery, 3.5 hours duration.
DLP projection technology.
Power supply of charging: 5V 4.5A, 100V-240V 50Hz-60Hz
Weight: 450g
Size: 24cm(L)*6cm(W)*6.5(H)cm
.
|
|
