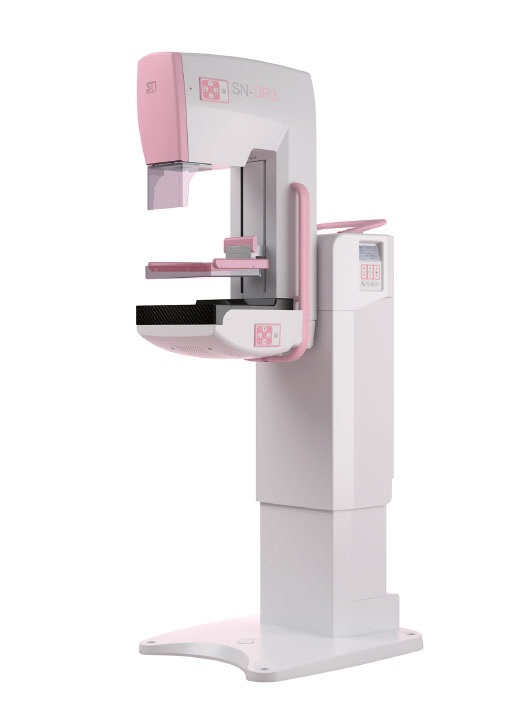

SN-DR3 Analog Mammography

Features:
1. Standalone System (Generator Integrated within the main machine)
2. Generator: 40 kHz, 20 kV to 40 kV in 1 kV
3. High performance X-ray tube: Molybdenum Anode,
Focal Spot Size: 0.1 mm (Small)/ 0.3 mm (Large)
4. Support ISO center rotation function
C-arm Rotation range: +180°/-135°
5. Height range of breast support surface: 750mm-1330mm (±2%)
6. C-arm: Motorized Movement, Dual side digital display
7. Compression Paddles: Dual Smart Compression Mechanism
8. Spatial Resolution: ≥15Lp/mm
9. Film size: 18*24cm or 24*30cm
10. Focal distance : 650mm
11. Additional filter: 0.03mm Molybdenum / 0.5mm Aluminum
Additional filter Switch: Automatic
12. Field adjustment: Auto/Manual
13. Remote control panel: 7inches
14. Magnification ratio: (1.8)/1
15. Exposure mode: Manual / AEC
16. Power supply: single phase, AC 220~230 V±10%
Frequency: 50/60 Hz±1 Hz
17. Max. power : 4000 VA
18. N.W.: 240 Kg
19. Packing Size: 115 X 85 X 135 CM
