SYX20

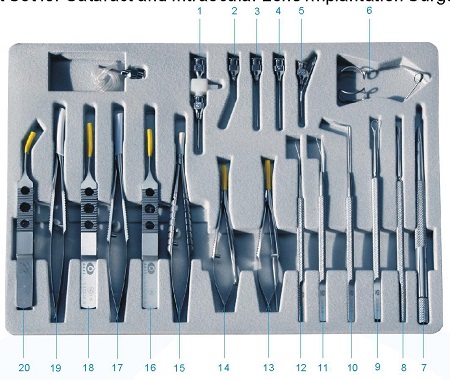

Including:
1:Coaxial I/A Cannula
2-4:Aspiration Needle
5:Coaxial I/A Cannula
6:Coaxial I/A Cannula
7:Blade Holder
8:Lens Spoon
9:Lens Loop
10:Iris Spatula
11-12:IOL Fixation Hook
13-14:Vannas Scissors
15:Micro-needle Holder
16:Tying Forceps
17:Corneal Scissors
18:Suturing Forceps
19:Cataract Scissors Membrance
20:Tying Forceps

No.

Name

Model

Specifications

1

Coaxial I/A Cannula

56190

Straight tip,triple joint,0.6mm

2-4



Aspiration Needle



56146

Angled   Φ0.4mm tip,15degree,27mm in total length

56144

Straight Φ0.4mm tip, 27mm in total length

56148

StraightΦ0.7mm tip,15degree,27mm in total length

5

Coaxial I/A Cannula

56191A

Double curved tubes,   Φ0.7mm

6

Eye Speculum

51288A

Wire speculum,stainless 15mm in blade length,50mm in total length

7

Blade Holder

56202B

With spring,120mm in total length

8

Lens Spoon

52574

8*2.5mm in spoon length,130mm in total length

9

Lens Loop

52488A

Tip 4mm(width)*6mm(length)curved loop,120mm in total length

10

Iris Spatula

52404A

Curved,11mm in tip length,120mm in total length

11-12



IOL Fixation Hook



51474A

Angled Φ0.2mm,110mm in total length

51478A

0.2mm   cylindrical tip,angled 15degree,110mm in total length

13-14



Vannas Scissors

54138B

Straight,6.5mm in blade length,90mm in total length

54140B

Curved,6.5mm in blade length,84mm in total length

15

Micro-needle Holder

55152B

Curved,110mm in total length

16

Tying Forceps

53320A

Straight,platform 4.5mm in length,105mm in total length

17

Corneal Scissors

54109B

Slightly curved,14mm in blade length,120mm in total length

18

Suturing Forceps

53325A

Straight,platform 4.5mm in length,1*2 teeth of 0.15mm,105 mm in total length

19

Cataract Scissors Membrance

54264B

Straight tips,10mm in blade length,117mm in total length

20

Tying Forceps

53324A

Short angled,platform 4.5mm in length,114mm in total length
