Descriptions:

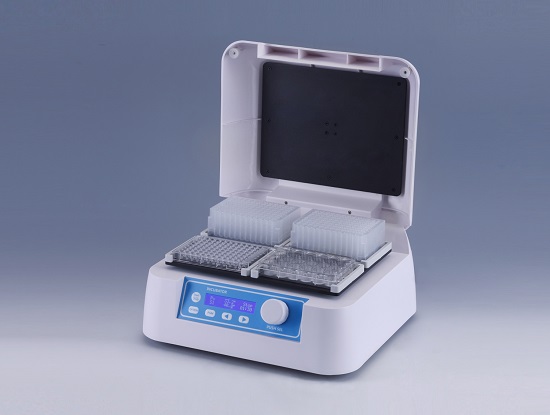

TS300 Thermo Shaker forMicroplates is a multipurpose thermostatic shaker controlled by brushless DC motor and PID intelligent temperature control technology. The PID fuzzy controltechnology can accurate precision and automatically adjust the heating rate, reduce waiting time. TS300 combines constant temperature and oscillationperfectly together, greatly shorten the experimental operation time, which is the ideal automation tool for samples hatching, catalytic reaction process of preserving, blending, save and etc.
Features:
- Easy to set up and use, all information real-time display and showing setup operation, convenient to observe equipment running status.
- Support standard mircoplates and deepwell plates.
- Brushless DC motor, low noise, small interference, free maintenance.
- Automatic preheating function.
- Automatic power recovery function.
- Temperature calibration function.
- Built-in software and ardware over-temperature protection device, will use morereliable
Technical parameters:
Temp. setting range |
0 ℃ ~80 ℃ |
Temp. control range |
RT+5 ℃ ~80 ℃ |
Timing range |
1min~ 99h59min/∞ |
Temp. accuracy |
≤±0.5 ℃ * |
Display accuracy |
0.1 ℃ |
Temp. uniformity |
≤±0.5 ℃ * |
Shaking speed |
200~1350rpm |
Orbit |
3mm |
Auto preheating |
Yes |
Auto resume to run |
Yes |
Capacity |
4Microplates or Deepwell plates |
Power supply |
300W |
Voltage |
AC220v/50-60Hz |
Heating time |
≤10min(from 25 ℃ to 80 ℃ ) |
Dimension(mm) |
340x320x200 |
Weight(kg) |
9.5 |
|
|
