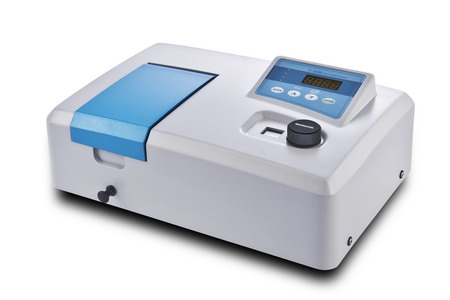

V-5000 is a basic model with high cost-performance. High quality silicon photometric diode detector and 1200 lines/mm grating ensure the high accuracy and precision.
Features
--
Easy to use, Press one button for easy switching of Transmittance, Absorbance and Concentration modes
--
Auto zero and blank
--
LED display is large enough to read from any distance, there's no need to search or squint.
--
Large sample compartment, it can accommodate 5-100mm path length cuvettes with optional holders
--
Pre-aligned design ensures the user to change lamp conveniently
--
Optional software based on windows® can expand the applications to Standard Curve & Kinetics
--
Two-points-method to measure concentration of unknown samples
Specifications:
| Model |
V-5000 |
| Optical System |
Single Beam,Grating 1200lines/mm |
| Wavelength Range |
325-1000nm |
| Spectral Bandwidth |
4nm |
| Wavelength Accuracy |
±1nm |
| Wavelength Repeatability |
0.5nm |
| Photometric Accuracy |
±0.5%T |
| Photometric Repeatability |
0.3%T |
| Photometric Mode |
T, A, C, F |
| Stray Light |
<0.3%T |
| Stability |
± 0.002A/h @ 500nm |
| Display |
4 Bits LED |
| Detector |
Silicon Photodiode |
| Output |
USB Port & Parallel Port(Printer) |
| Light Source |
Tungsten Halogen Lamp |
| Power Requirements |
AC 85~250V |
| Dimension |
420*280*180mm |
| Weight |
8kg |
