DYY-6C Electrophoresis Machine


DYY-6C Power


Main specifications

  • Power requirement:A.C. 220V 50Hz
  • Input power: about 300 VA;
  • Output voltage: (6-600)V (Increase or decrease:1V/step);
  • Output current: (4-400) mA (Increase or decrease:1mA/step);
  • Output power: 240 W
  • Stability: constant voltage <1%; constant current <2%;
  • Adjustment rate:constant voltage <2%; constant current <3%;
  • Dimension: (W x D x H): 315 x 290 x 128 (mm);
  • Weight: about 5.0 kgs.



    Send Quick Inquiry
    Your Name: Required
    Your E-mail: Required
    Subject: Do Not Change It
    Message:

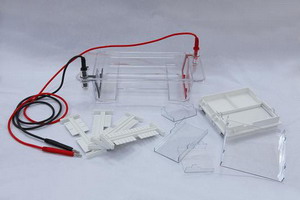

  • DYCP-31DN Horizontal

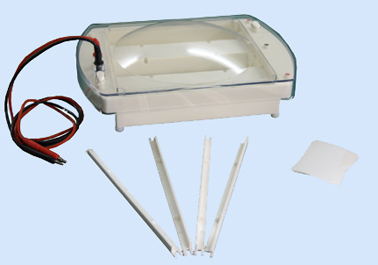

    DYCP-38C Horizontal

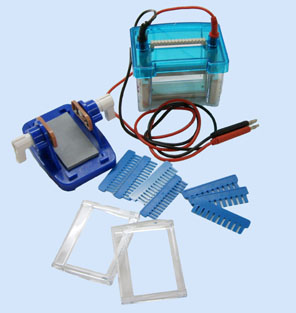

    DYCZ-24DN Vertical
